Lithography is a planographic printing process,a technique in which the printing process takes place on completely flat surfaces.
This meaning that the printing and non-printing elements are located on exactly the same geometric plane on the plate,rather than from raised (embossed) or engraved (deep) areas.
The fundamental mechanism separating the image from the non-image areas is not physical relief, but rather one complex interfacial surface phenomena—specifically, the chemical chemical separation of water and oil/grease to determine where the ink sticks.
The Chemical Principle: Oleophilic vs. Hydrophilic
The excellence of the lithographic process relies entirely on surface chemistry:
Image Areas (Oleophilic): The printable areas are chemically treated to be ink-receptive and water-repellent.
Non-Image Areas (Hydrophilic): The blank areas are treated to be water-receptive and ink-repellent.
The Evolution of Lithographic Technologies
While modern production relies almost exclusively on offset techniques, the lithographic family includes several different evolutionary branches.
Stone lithography (1796): Invented by Alois Senefelder.
A direct printing technique that uses a prepared limestone surface.
The image is drawn with a specialized oil ink, and the stone is moistened before the ink is applied. Today, it is used exclusively for fine art.
Collotype: A direct printing method that uses a layer of light-sensitive gelatin exposed to a glass substrate.
Depending on the exposure, the gelatin swells differently when moistened, creating different absorption of color.
It is used exclusively for specialized artistic reproductions.

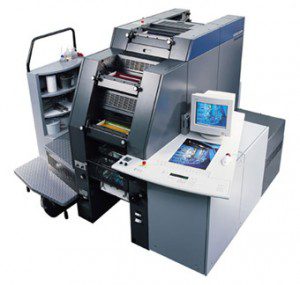

Di-Litho (Direct Lithography): Developed primarily for newspaper production, this process used lithographic plates printing directly onto the paper (without a blanket).
It allowed traditional letterpress rotary machines to be retrofitted with dampening units.
It was quickly rendered obsolete by the advent of high-speed web offset presses.

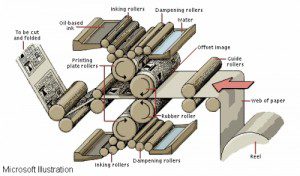

Modern Offset Printing: The Indirect Process

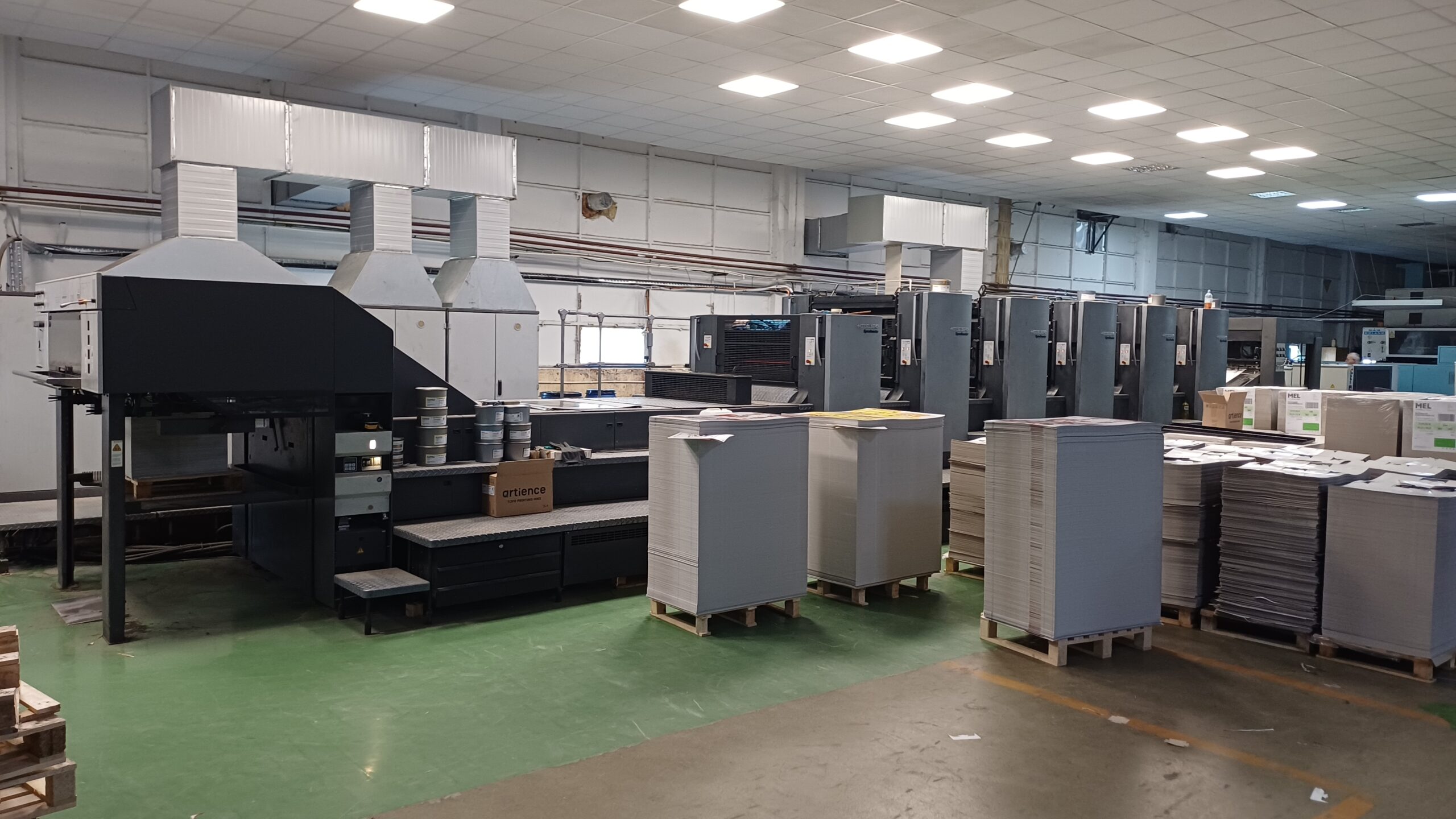

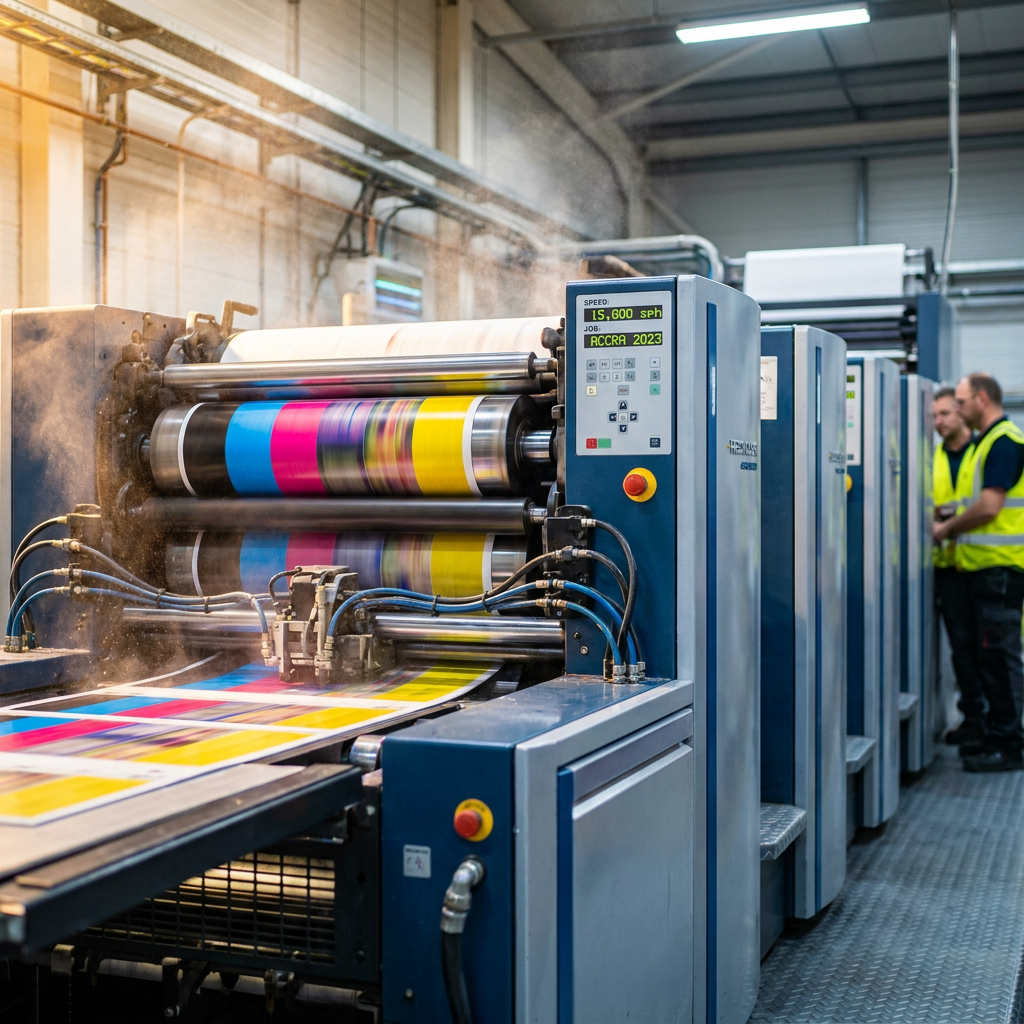

Offset printing is the dominant commercial lithographic technology.
It is an indirect printing process because the ink is not applied from the plate to the paper.
Instead, it is transferred (“offset”) from the rigid printing plate onto a flexible elastomeric intermediate carrier—the blanket—and then pressed onto the final substrate.
This protects the delicate plate from the abrasive surface of paper or cardboard.
1. Conventional Offset Printing
This is the most widely used technology.
It requires the constant application of a dampening solution (water mixed with specific chemical additives such as isopropyl alcohol or substitutes) via dampening rollers.
Hydrophilic non-image areas accept a microscopic water film, which then prevents the adhesion of oleophilic ink to those areas.
2. Waterless Offset Printing (Dry Offset)
In waterless offset, the dampening system is completely eliminated.
The printing plate’s surface is coated with an ink-repellent silicone layer (typically around 2 microns thick).
The image areas are created by removing this silicone, exposing an ink-receptive polymer base beneath.
This process requires precise temperature control systems on the press and specially formulated, high-tack inks.
Advantages and Limitations of Offset Lithography
Advantages: Consistently high image quality with sharp halftones; longer plate life since the plate only contacts the soft rubber blanket; unmatched cost-efficiency and speed for medium to very large print runs.
Disadvantages: High initial setup (make-ready) costs, making it uneconomical for very short print runs compared to digital printing; surface smoothness and absolute solid ink density may sometimes fall slightly behind advanced rotogravure in ultra-high-volume flexible packaging.
Frequently Asked Questions: Understanding Offset Lithography
Core principles and technical distinctions in modern planographic printing.
1. What is the fundamental chemical principle behind offset lithography?
Offset lithography operates on the principle of interfacial surface tension—specifically, that oil (ink) and water do not mix.
The printing plate is chemically separated into oleophilic (ink-receptive/water-repellent) image areas and hydrophilic (water-receptive/ink-repellent) non-image areas.
2. Why is a rubber blanket used in the offset printing process?
The elastomeric blanket serves as an intermediate carrier.
It absorbs mechanical shocks, easily conforms to the textured surface of various substrates (like rough paper or cartonboard), and protects the fragile aluminum printing plate from abrasive wear, significantly extending plate life.
3. What is the difference between conventional and waterless offset printing?
Conventional offset uses a water-based dampening solution to keep non-image areas free of ink.
Waterless (dry) offset eliminates the dampening system entirely, relying instead on a precise silicone coating on the plate to repel ink, which requires specialized temperature-controlled printing units and specific inks.
4. Is offset lithography cost-effective for short print runs?
No. Offset printing requires significant make-ready time, including plate manufacturing, cylinder mounting, and ink-water balance calibration.
These high initial setup costs make it uneconomical for very short runs, where digital printing technologies are far more cost-effective.
